Outdoor fibre cable,
OSLG-SA
OSLG-SA144OM2HDPE

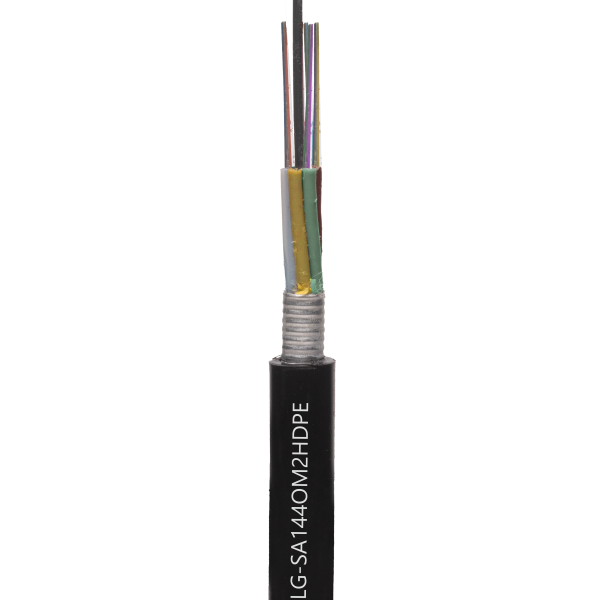

Outdoor Armoured Stranded Loose Tube cable, Single Jacket, Single Armour, 144 fibre core, OM2, HDPE
(In stock)
Osilan’s Outdoor Armoured Stranded Tube cable, Single Jacket, and Single Armour with Corrugated Steel Tape are the optimal choice for any backbone in Outside Plant (OSP) Installations. The Outdoor Armoured Stranded Tube design is perfect for direct burial applications and all outdoor installations. The cable quality and structure offer reliable transmission performance with additional crush and rodent protection.
Fibre Type
Jacket Color
Fibre Construction Cable
Cable Type
Cable Length
Fibre Count
Outer Jacket
|
|
| Items | Specifications |
| Cladding Diameter | 124.8±0.7 μm |
| Cladding Non-Circularity | ≤0.7% |
| Core-Cladding Concentricity Error | ≤0.5 μm |
| Coating Diameter | 245±5 μm |
| Coating Non-Circularity | ≤6.0% |
| Cladding-Coating Concentricity Error | ≤12.0 μm |
| ITU-T Standards | G.652.D for SM |
| G.651.1 for MM | |
| Attenuation | 1310nm ≤0.36 dB/km |
| 1550nm ≤0.25 dB/km | |
| 850 nm ≤3 dB/km | |
| 1300nm ≤1 dB/km |
